VSAT

SOLID STATE POWER AMPLIFIER

We deliver high-performance SSPAs across a broad frequency range, from 10 MHz to 67 GHz. Our amplifiers can be customised to meet your exact power, frequency, and enclosure requirements, with fast turnaround times to keep your project moving. The models listed below represent just a portion of our capabilities — contact us to discuss a solution tailored to your needs.

Hub mounted Models:

Part Number          Description            Frequency     Small Signal Gain     Psat

----------------------------------------------------------------------------------------------------

​PA01M30M100V5       Low-frequency PA        1 to 30 MHz                   53 dB                        100W

​

PA20M500M200V5    Low-frequency PA     20 to 500 MHz               53 dB                      100W

​

PA500M6000M100V5      Wideband PA       500 to 6000MHz           50 dB                     100W



PA20M3000M100V5         Wideband PA          20 to 3000M                 50 dB                     100W

​

PA2.7G3.5G700V5        S-Band PA                  2.7 to 3.5 GHz                    77 dB                      700W


PA08G11G700V5         X-Band PA                  8 to 11 GHz                         60 dB                     700W

​

PA9G10G250V5          X-Band PA                  9 to 10 GHz                         60 dB                    250W


PA9G10G500V5D         X-Band PA              9 to 10 GHz                           63 dB                 500W


PA9G10G1000V5Q       X-band PA              9 to 10 GHz                          64 dB                1000W

​

PA13G16G700V5       Ku-band PA                13 to 16 GHz                       70 dB                    700W


PA34G36G250V5          Ka-Band PA             34 to 36 GHz                     67 dB                    250W



PA34G36G500V5D        Ka-Band PA             34 to 36 GHz                    70 dB                   500W


PA02G18G300V5         Wideband PA               2 to 18 GHz                    60 dB                   300W


PA02G18G60V5          Wideband PA                2 to 18 GHz                    55 dB                     60W


PA06G18G300V5        Wideband PA                6 to 18 GHz                  90 dB                    300W


PA18G26G300V5        Wideband PA               18 to 26 GHz                60 dB                     300W


PA26G40G300V5       Wideband PA                26 to 40 GHz             60 dB                     300W


PA46G53G100V5       Q/V Band PA                 46 to 53 GHz             55 dB                      100W



PA52G65G45V5           V Band  PA                   52 to 65 GHz              55 dB                      45W

​

PA40G67G7V5            Q/VBand  PA                 40 to 67 GHz              41 dB                      38dBm



​

​

Feel free to contact us for more information, a datasheet, or to request a quote.

Rack mounted Models:

Part Number          Description            Frequency     Small Signal Gain     Psat           Datasheet

----------------------------------------------------------------------------------------------------------------------

​PA1M30M100V6      Low-frequency PA                1 to 30 MHz                   50 dB                   100W          Datasheet

​

PA30M500M100V6       Low-frequency PA        30 to 500MHz               50 dB                  100W           Datasheet

​

PA500M6000M100V6     Wideband PA           500 to 6000MHz          50 dB                     100W          Datasheet

​

PA20M3000M100V6       Wideband PA            20 to 3000MHz             50 dB                     100W           Datasheet


PA08G11G700V6              X-Band PA                  8 to 11 GHz                       50 dB                     700W            Datasheet

​

PA08G11G1400V6D        X-Band PA                8 to 11 GHz                       50 dB                    1400W            Datasheet



PA09G10G250V6             X-Band PA                9 to 10 GHz                       60 dB                   250W              Datasheet

​

PA09G10G1000V6          X-Band PA                9 to 10 GHz                       65 dB                   1000W           Datasheet

​

PA2G18G300V6                Wideband                  2 to 18 GHz                       55 dB                   300W             Datasheet

​​

​PA40G67G7V6                   Wideband                 40 to 67GHz                      41 dB                   38dBm           Datasheet

​

PA52G65G45V6                Wideband                 52 to 65GHz                        55dB                    45W              Datasheet

​

Many more rack-mounted models are available. Feel free to contact us for more information, a datasheet, or to request a quote.

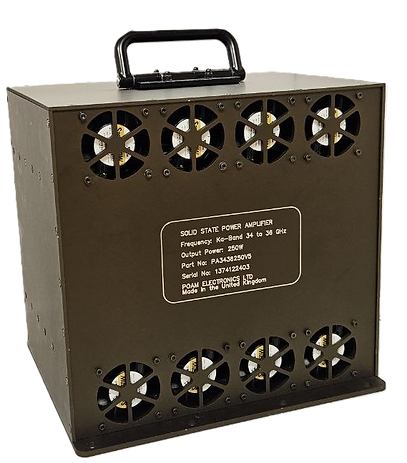

Solid State Power Amplifier (SSPA)
Ka-Band (34 to 36 GHz)
250W (outdoor model)

**NEW**

An excellent alternative to travelling wave tube amplifiers, POAM – PA34G36G250V5 is a solid-state Power Amplifier with an operating range of 34-36 GHz while achieving a minimum of 54 dBm (250 Watts) of instantaneous saturated power. With its maximum performance in gain, efficiency, signal flatness, and RF output power, this SSPA is the ideal building block for millimetre-wave sub-systems with wide-ranging applications.

 Specification:

  • Frequency Range: 34– 36 GHz

  • Saturated Power: 54 dBm

  • Solid State MMIC Reliability

  • Multi-Element Redundancy

  • Instant On (no warm-up)

  • IP66 protection

  • Ultra-low weight (only 16kg)

  • Small in size (320 mm x 283 mm  x 205 mm)

Applications:

  • Radar

  •  Satellite communication

  •  TWTA Replacement

Ka band SSPA

Solid State Power Amplifier (SSPA)
Wideband 40 to 67GHz
(Rack-mounted model)

**NEW**

The PA40G67GV6 is a high-performance wideband AC power amplifier operating across a frequency range of 40 to 67 GHz. It delivers a typical output power of 38 dBm, with a typical small-signal gain of 41 dB and excellent gain flatness of ±2.0 dB.


Designed for convenience and reliability, the amplifier operates from a standard 110V/220V AC power supply. Both the cooling fan and heatsink are fully integrated within the unit, ensuring
efficient thermal management in a compact form factor.


The amplifier features 1.85mm female connectors and supports an operating temperature range of -30°C to +70°C, making it suitable for demanding lab and field environments.

 Specification:

Q band SSPA

Applications:

  • Wideband Solid State Power Amplifier
    •    Small Signal Gain 41dB Typical
    •    Output Saturation Power 38dBm Typical

  • •   Supply Voltage 110/220 VAC
    •    50 Ohm Matched Input/Output
    •    Excellent gain flatness of ±2.0 dB
    •    Overcurrent Protection
    •    Input/Output 1.85mm-F connectors
    •    Solid State MMIC Reliability
    •    Instant On (no warm-up)

  • •     Small in size: 310 x 220 x 100 mm
    •    Monitoring and Control Communication through S232/RS485/RS422/USB/Ethernet (customer selected)

  • Radar System

  • Satellite communication

  • Test instrument

  •  Cellular Modules

  • Research and Development

  • Military and Aerospace Applications
