SOLAR RADIO TELESCOPES

DesSolar

Solar Radio Telescopes (SRT)

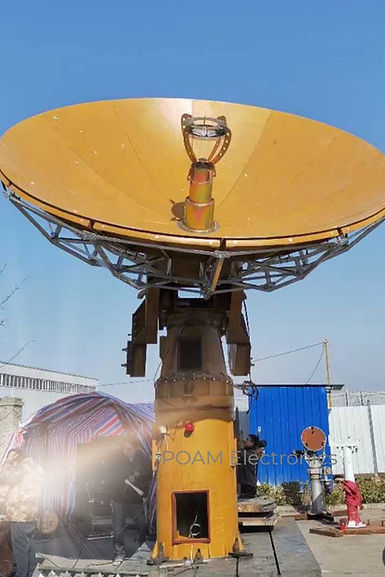

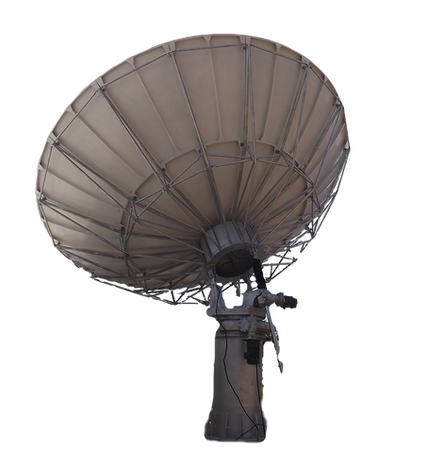

The Solar Radio Telescopes (SRT), with various antenna sizes, were designed and built by POAM Electronics. According to the application, the size can be chosen from 1.8m (SRT18), 3.7m (SRT37), 4.5m (SRT45), 6m (SRT60), 9m (SRT90) or 13m (SRT130).

​The SRT offers very wide continuous travel ranges and high pointing/tracking accuracies and is suited for multi-mission operation in Solar Radio Astronomy applications.

​The operational frequency can be chosen for single or multi-band observation from 1 to 30GHz with linear or circular polarization.

For monitoring the wideband application, the special dual-polarized wideband 1 to 18GHz front-end and back-end units will be provided, which are suited to attach to all antenna sizes. Please contact us for more information.

​The ultra-wideband antenna that was successfully designed is able to cover all RSTN (Radio Solar Telescope Network) frequency bands from 200MHz to 18GHz with a single antenna. Please contact us for more information.

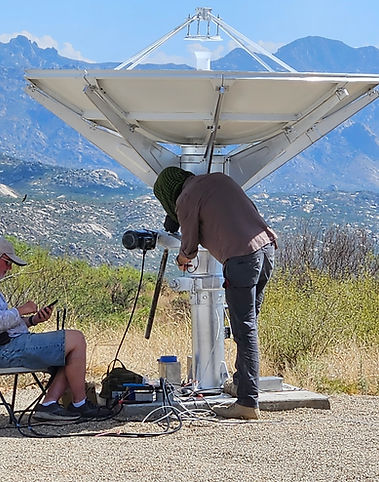

solar radio telescope
Specification

  • Fully motorized rotational mount

  • Automatic tracking and monitoring

  • Different antenna sizes from 1.8 meter to 13 meter

  • The single, multiple or wideband horn and front-end

  • Azimuth over Elevation or X/Y configuration

  • high resolution ( 0.01° ) absolute encoders

  • Limit switches safety mechanism

  • Solar Flux Unit (SFU) Vs. time and frequency graphs

  • Rackmount Antenna Controller

  • Rackmount Back-End receiver unit

  • Chose of the front-end for dual or single Pol. with Linear or circular polarization configuration.

  • Data analyzing and control software.

  • 50-meter control and coax cables

  • One year warranty and 10 years part supply

Specification:

  • Fully motorized rotational mount

  • Automatic tracking and monitoring

  • Different antenna sizes from 1.8 meter to 13 meter

  • The single, multiple or wideband horn and front-end unit

  • Azimuth over Elevation or X/Y configuration mount configuration

  • high-resolution absolute encoders

  • Limit switches safety mechanism

  • Solar Flux Unit (SFU) Vs. time and frequency graphs

  • Rack-mounted Antenna Controller

  • Rack-mounted Back-End receiver unit

  • Choose the dual or single Pol. with Linear (V/H) or circular (LH/RH) polarization configuration.

  • Data analyzing and control software.

  • 50-meter control and coax cables

  • One year warranty and 10 years part supply

Options:

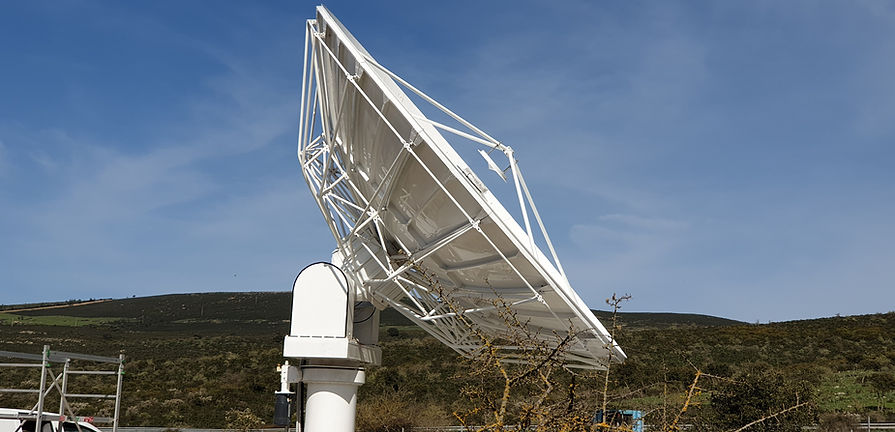

Solar Telescope

  • NPM (None Penetrating Mount) for 6m antenna or less.

  • Multi bands or wideband feed option.

  • Calibration noise source for absolute solar flux measurement

  • Cryogenic system (suitable for antennae more than 6m).

  • Adding a Log Periodic Dipole Antenna (LPDA) on the side of the dish for low-frequency band observation.

  • Optional multi-receives units for simultaneous observation on different bands.

  • Training and installation services on site.

  • RF to fibre converter.

Resources:

9m Solar Telescope
Option
