Tracking Antenna

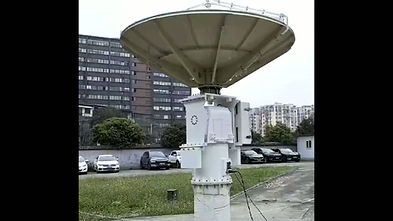

ATS series are professional class tracking antennas with X-Y mount ( or El/Az mount without Zenith Keyhole) for Rx or Rx/Tx applications. ATS antennas are suitable to work on all bands from L to Ka bands and typically can be used for the following applications:​
​
-
EOS- Earth Observation Satellites
-
DB- Direct Broadcast
-
Tracking LEO and MEO satellites
-
TT&C - general satellite up-link and down-link telemetry, including microsats
-
Radar applications for advanced meteorological and environmental analysis
-
SARSAT reception of MEO satellites in simultaneous S and L bands
-
and many more...
​​
​ please contact our technical team to discuss the best option for your application.
Specification:
-
Fully motorized rotational mount (without Zenith Keyhole).
-
Dual reflector shape for higher efficiency (or prime focus for wideband application).
-
Custom-made horn for Rx or Tx/Rx application.
-
Variable speed motors and controller.
-
An optional second Azimuth motor for low backlash.
-
High-resolution absolute encoders and Limit switches safety mechanism.
-
User-friendly control software.
-
50-meter control cable ( or fibre optics link).
-
One-year warranty and 10-year part supply.
Options:
-
NPM (None Penetrating Mount)
-
Cryogenic system
-
Heating system
-
Customized feed system
-
Training and installation services on site.
-
RF to fibre converter and fibre links.
