Products:

RTP30

 RTP30 - 3 meter Radio Telescope package

3m Radio Telescope Antenna
3-meter solid antenna in 2 models

[ Ring focus and prime focus antenna for a narrow and wideband observation ]

RTP30 is a  low-cost integrated Radio Telescope kit, fully motorized which is designed for professionals and educational institutes, a great starting tool for Radio Astronomer.

With this telescope, you can detect Sun, Moon and some strong radio sources ( Many strong radio sources in the database are available for quick reference ).

The main Front-End receiver of this antenna is L-Band, but additionally, we can supply C, Ku and Ka-band front-end receivers with this telescope as an option.

RTP53

 RTP53-5.3 meter Radio Telescope package

Radio Telescope
Heavy duty mount with solid 5.3-meter dish


[ With the great surface accuracy for observation up to 22GHz ]



RTP53 Radio Telescope is fully motorized, designed for professionals, and suitable for educational projects. The possibility of rotation of Az=0-360 degrees and El=0-90 degrees makes this radio telescope ideal for full-sky observation.


Radio Telescope
Radio Telescope

RTP53 is a State-Of-The-Art integrated Radio Telescope, fully motorized and computerized. This is an ideal radio telescope system for those interested in starting serious research in radio astronomy. RTP53 can be supplied with either L, C, Ku or Ka bands front-end receiver unit.

This antenna is also a great product for making multi-components interferometer arrays.

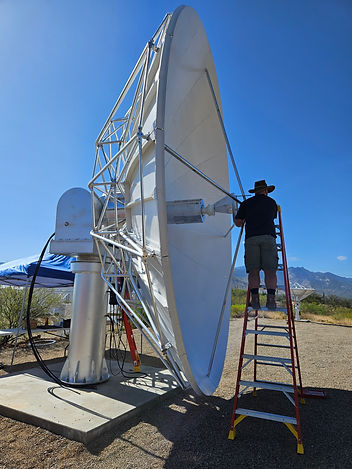

Tracking Antenna in USA
RTP70

 RTP70 - 7 meter Radio Telescope package

RTP70 - 7m Radio Telescope Antenna
Excellent package for Research in Radio Astronomy


[ Many science targets can be reached with this great 7m antenna ]



If you are interested in observing Pulsars or weak celestial sources, RTP70 will be a great tool. With this Plug and the Play package, you don't need to be worried about the telescope instrument and focus on your science targets.



RTP70 has enough collecting area for advanced astronomers to be appreciated to observe many physical phenomena that can be expected from a 7m radio telescope. This ideal radio telescope system is a proper tool for those who are interested in serious research in radio astronomy.

RTP70 is a great Radio Telescope for Pulsar observation too.

RTP90

 RTP90 - 9 meter Radio Telescope package

RTP90 - 9m Radio Telescope Antenna
Professional grade Radio Telescope for Researcher


[ Huge collecting area to catch weak radio signal ]



You need only to connect your PC to the control system and install its software, and then your radio telescope is ready for observation.

RTP90 is a Radio Telescope package ideal for observing weak celestial sources in spectral line or continuum mode in L-Band or other bands up to 22GHz. RTP90 has 9-meter solid dish with excellent surface accuracy.



Additionally, you can order a Pulsar receiver unit with this package to make your radio observatory more powerful for detecting many weak Pulsars.

RTP120

 RTP120 - 12 meter Radio Telescope

POAM 12m Radio Telescope
Powerful Telescope for deep sky observation


[ State-Of-The-Art Radio Telescope for observation up to 30GHz ]



RTP120 with a 12 m dish is a high-end product, Plug & Play system designed for researchers and professionals.

The ability to integrate international projects like VLBI is the advantage of this system.

The RTP120, designed and built by POAM Electronics, offer wide continuous travel ranges and high pointing/tracking accuracies and is suited for multi-mission operation in Radio Astronomy applications.

The antenna support/tower can be a steel or reinforced concrete structure. The lower tower section offers rack space for the RF subsystems, baseband equipment, receivers, or customer-furnished equipment.

Antennas can be equipped with electrical reflector heating systems or Cryogenic cooling systems.

solar telescope

 Wideband dual polarised Solar Telescope

Solar Tracking antenna
Solar Radio Telescope

A Solar Radio Telescope with a prime focus antenna from 3.7m to 6m dishes is a powerful tool for solar monitoring for radio observation from 1 GHz to 18 GHz.

This Solar Telescope is specially designed for solar radio astronomer; the main features are as follow:

  • Antenna Size:  4.5 meters (3.7-meter and 6m versions are also available )

  • Antenna type: Prime focus

  • Max Bandwidth: 18 GHz

  • Polarisation: dual linear V and H or dual circular- LHCP and RHCP

  • Mount type: motorised Elevation over Azimuth

  • Auto tracking function

  • Separate RF channel for  each polarization

  • Solar receiver with:

         Spectral resolution: from 1 Hz to 18 GHz

         Minimum Detectable signal -155 dBm

         Digital variable Attenuator and Amplifier

  • Antenna Gain: 50 dB ( in mid-band for a 4.5m dish)

  • G/T: 30 dB ( in mid-band for 4.5m dish)

The Package includes:

  • 4.5m ( or 3.7m/6m) fully motorised prime focus antenna with El over Az mount

  • Wideband dual Pol. 1 GHz to 18 GHz  horn

  • Solar Receiver

  • Accessories

  • One-year warranty and 10 years of part supply

6m solar telescope with LPDA antenna working together from 50MHz to 4 GHz for solar observation

Solar Radio Telescope

Ultra wideband dual polarised solar telescope with 3.7m antenna installed in Italy

Solar Telescope

A wideband dual polarised solar telescope with 6m antenna installed in Poland

Tracking antenna

 Tracking Antenna

LEO Tracking Antenna
Tracking antenna in X-Y mount with no keyhole in zenith

ATS series are professional class tracking antennas with X/Y or El/Az mount for Rx or Rx/Tx and suitable to work on all bands from L to Ka, typically can be used for the following applications:

  • EOS- Earth Observation Satellites

  • DB- Direct Broadcast

  • tracking LEO and MEO satellites

  • TT&C - general satellite up-link and down-link telemetry, including microsats

  • Radar applications for advanced meteorological and environmental analysis

  • SARSAT reception of MEO satellites in simultaneous S and L bands

  • and many more...

The available models:

  • ATS-20      2.0 meters, dual reflector shape El/Az mount,

  • ATS-37      3.7 meters, prime focus shape, X-Y (or El/Az) mount,

  • ATS-45      4.5 meters, prime focus OR dual reflector shape, X-Y                                 (or El/Az) mount,

  • ATS -53      5.3 meters, dual reflector shape, El/Az  mount,

  • ATS-60      6 meters, prime focus shape, El/Az mount,



Other antenna sizes are also available.

Available Horn:

Dual S/X bands, Dual C/Ku Bands, Dual Ku/Ka Bands, Triple L/S/X bands, Triple S/C/Ku bands.

Don't hesitate to contact our technical team to discuss the best option to suit your application.

Tracking Antenna
Tracking antenna in El over Az mount with no keyhole in zenith
Tracking Antenna
Tracking Antenna
High-Speed and High frequency tracking antenna with small 2m reflector
Pulsar Receiver

 Pulsar Receiver Unit

***NEW PRODUCT***

Pulsar receiver package, the powerful integrated system can work with any radio telescope with L-Band output, You need to connect the RF cable to the Pulsar receiver, install PRS software on your PC, and then your system is ready for observation and recording Radio Pulsars data.

In the case of working with other frequency bands rather than L-Band, transferring the input frequency to L-Band ( with the centre frequency of 1420MHz and 100MHz bandwidth) needs to use the up/down conversion unit for more information; please get in touch with us to discuss in detail.

Main Features:

  • L-Band  Input

  • 100MHz bandwidth

  • Sample rate 2GSa/s ( Maximum )

  • Input impedance 50Ω

  • Up to 50,000wfms/s waveform capture rate

  • Up to 60,000 frames of real-time waveform record, replay & analysis functions

  • Auto measurement of 25 waveform parameters, with statistics

  • Built-in FFT with a choice of window functions

  • Various waveform math functions

  • Connectivity mode USB

  • 4U Rackmount case

  • Power Voltage 100 V to 240 V, 45 Hz to 65 Hz

  • Power Maximum 50 W, 250 V

  • Environment Temperature Range: 0℃ to +50℃ ( Operating )

  • Humidity Range: ≤95% relative humidity

Please contact us for more information.

Pulsar Receiver

The Package includes:

  • Pulsar receiver unit

  • PRS software

  • USB cable

  • Power cable

  • User manual

  • One year warranty

  • Up/down conversion unit ( Optional )

Accsessoris

 Accsessories and other products

Lens L-Band Horn for big reflector antenna
L-Band horn for big reflector antenna
The only place to supply radio telescope accessories


[ No matter what type of project you have, we can design and construct a product that is just for you ]



If you want to discover how our company can assist you with your project, please get in touch with us to discuss your requirements in more detail.


X+S band 4-port RX only feed (5.3m antenna)-1.jpg
4-ports S+X bands horn
Radio Telescope Receiver
Radio telescope Receiver
1420 MHz Noise/Load Cal. unit
Noise/Load Calibration Unit for 1420 MHz
Antenna Drive Unt
Antenna Controller
Outdoor Antenna Drive Unit (ADU) with GPS, optical fibre connection and handy controller
Antenna Control Unit
Antenna Control Unit
Advanced Rack-mounted Antenna Control Unit (ACU) with touch screen monitor, optical fibre connection and Remote Control access

POAM Electronics can supply a variety of products from RF to microwave to mechanical structure; the samples are:

1) Ultra Low Noise Amplifier for any band from 50MHz to 40GHz

2) Single/dual and linear/circular wide band and narrow band Horn antenna up to 40GHz

3) Noise and load calibration unit for any specific band

4) Mount and antenna with your requested size and shape

5) Software design for your specific application

6) Cryogenic and cooling system

and many more passive and active devices to support the R&D and telecommunication sectors.

Please contact us with your requirement.

If you need a Horn antenna, please look at our partner company (AstroAntenna.com) website via the below link:

https://www.astroantenna.com/category/all-products
